Ultrasonic air atomizing nozzle

Products Information

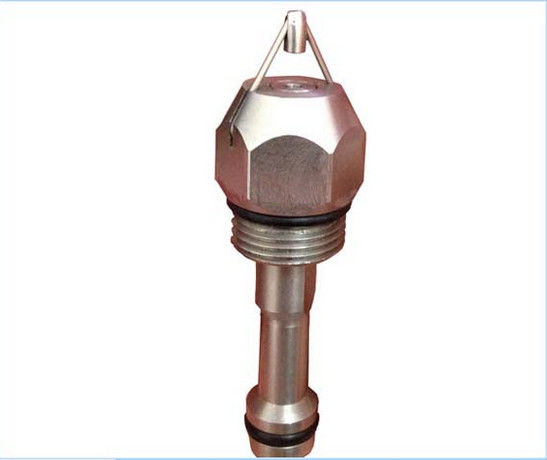

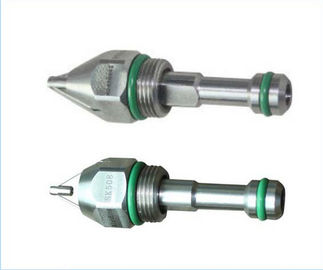

Bondi high quality ultrasonic atomizing nozzles with the ability to shear the water into extremely fine droplets--the so-called "dry fog", with droplets size 1-10 Microns.

The mechanical ultrasonic nozzle has a carefully designed resonator to produce high frequency wave. Compressed air passes through the nozzle's inner bore through a convergent/divergent section at high velocities and expands into a resonator cavity where it is reflected back to complement and amplify the primary shock wave.

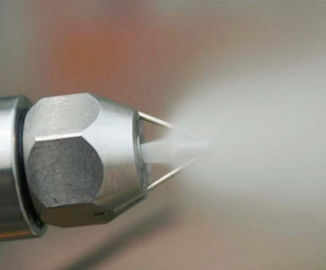

The result is an intensified field of sonic energy focused between the nozzle body and the resonator cap. Any liquid capable of being pumped into the shock wave is vigorously sheared into fine droplets by the acoustic field. Air bypassing the resonator carries the atomized droplets downstream in a soft plume shaped spray.



Application:



Dry fog nozzle have proven to significantly reduce fugitive dust from a variety of material handling points, including conveyor transfer points, trippers, reclaimers, crushers, screens, truck dumps, railcar loading/unloading, ship loaders-unloaders, and ash silo discharge chutes.



P/N	ADG SV508 Nozzles80°	ADG SV980 Nozzles30°	ADG SV882 Nozzles60°
Air pressure	5.2bar	3.5bar	5.2bar
Water pressure	1.2bar	0.6bar	1.2bar
Air comsumption	115L/Min	260L/Min	240L/Min
Water comsumption	7.1L/Hr	45L/Hr	20L/Hr
Droplet size	3-6microns	4-10microns	7-10microns
Air filter	<40microns	<40microns	<40microns
Water filter	<50microns	<50microns	<50microns
