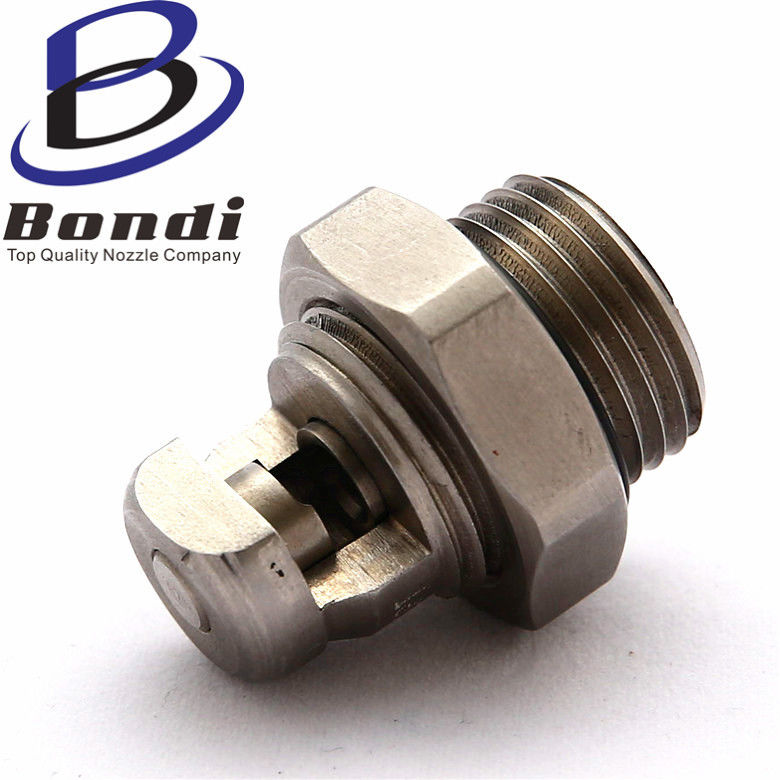

316SS Self-cleaning Flat Fan Spray Nozzle,Cleaning Atomizing Nozzle Stainless Steel

Product Details:

Place of Origin:	China
Brand Name:	Bondi
Model Number:	PMN002

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	$6.8/pc
Packaging Details:	Standard export box
Delivery Time:	15days after get your full payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	2000pcs/week

Contact Now

Detailed Product Description

Material:	316ss	Thread Size:	1/2''G,3/4''G And M27*1.5
Spray Pattern:	Flat Fan	Application:	Cleaning Nozzle For Papermaking

316SS Self-cleaning Flat Fan Spray Nozzle,Cleaning Atomizing Nozzle Stainless Steel

Material	316ss
Thread size	1/2''G,3/4''G and M27*1.5
Spray Pattern	Flat fan

Self cleaning flat fan nozzle features an automatic increase of pressure in case of orifice clogging, thus the orifice diameter is enlarged and the clogging matters are cleared away.Then the spray orifice returns to normal. In the elliptical orifice design, the axis of the spray pattern is a continuation of the axis of the inlet pipe connection.The tapering edges of the flat fan spray nozzles are useful in establishing overlapping patterns between adjacent sprays on a mutiple nozzle header.

self-clean spray nozzle11.jpg

Application

1. Paper making: meshwork cleaning, felt cleaning and roller cleaning
2. Steel plate cleaning in Continuous Casting Machine.
3. Water treatment: filter screen squeezer cleaning, conveyor, squeezer cleaning, deaerating and surface cleaning of aerating filter-sand.
4. Electronics: PCB cleaning
5. Automotive and household appliances: pretreatment before coating.

Picture shows
