60Degree Fine Droplet industrial ultrasonic atomizing dry fog nozzle ultrasonic spray nozzle

Product Details:

Brand Name:	Bondi
Model Number:	UNSN001

Payment & Shipping Terms:

Minimum Order Quantity:	1pc
Price:	$28/pc
Packaging Details:	standard export box
Delivery Time:	7days after get your full payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	200pcs/week

Contact Now

Detailed Product Description

Material:	304ss	Thread:	1/4''
Spray Angle:	30/60/80degree

Fine Droplet industrial ultrasonic atomizing dry fog nozzle ultrasonic spray nozzle

Bondi high quality ultrasonic atomizing nozzles with the ability to shear the water into extremely fine droplets--the so-called "dry fog", with droplets size 1-10 Microns.

The mechanical ultrasonic nozzle has a carefully designed resonator to produce high frequency wave. Compressed air passes through the nozzle's inner bore through a convergent/divergent section at high velocities and expands into a resonator cavity where it is reflected back to complement and amplify the primary shock wave.

The result is an intensified field of sonic energy focused between the nozzle body and the resonator cap. Any liquid capable of being pumped into the shock wave is vigorously sheared into fine droplets by the acoustic field. Air bypassing the resonator carries the atomized droplets downstream in a soft plume shaped spray.

Application:

Dry fog nozzle have proven to significantly reduce fugitive dust from a variety of material handling points, including conveyor transfer points, trippers, reclaimers, crushers, screens, truck dumps, railcar loading/unloading, ship loaders-unloaders, and ash silo discharge chutes.

Performance data

Categories	ADG 80°	ADG 30°	ADG 60°
Gas pressure	5.2bar	3.5bar	5.2bar
Water pressure	1.5bar	0.6bar	1.2bar
Gas consumption	115L/Min	260L/Min	240L/Min
Water consumption	7.1L/Hr	45L/Hr	20L/Hr
Atomizing granularity	3-6microns	4-10microns	7-10microns
Gas filtration demand	<40microns	<40microns	<40microns
Water filtration demand	<50microns	<50microns	<50microns

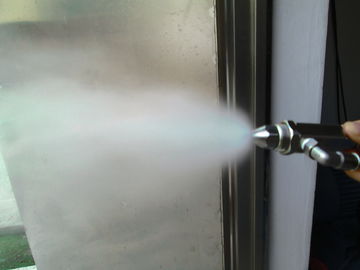

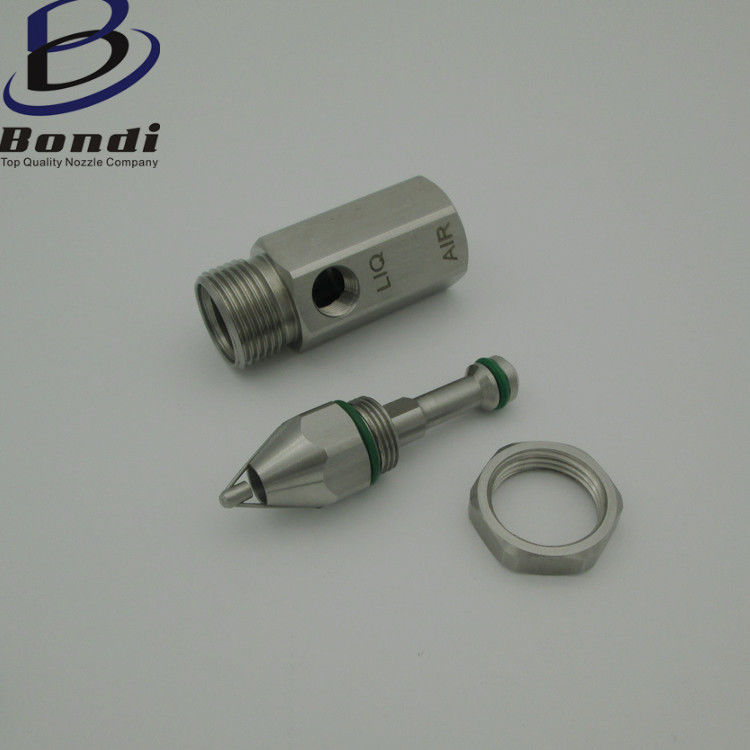

Product show

60Degree Fine Droplet industrial ultrasonic atomizing dry fog nozzle ultrasonic spray nozzle
